9-Port with Four-Bolt Flanges
Rotary Union | Hydraulic Swivel
Our 9-port rotary union with four-bolt flanges as part of its design, is built for the most complex rotational systems where multiple circuits must operate together. Also known as a swivel joint, this advanced rotary union transfers fluid between stationary and rotating components while managing nine independent flow passages at once.
With its four-bolt flange mount, this hydraulic swivel provides a stable connection that stands up to heavy-duty cycles. Each passage is carefully engineered to deliver precise, leak-free performance, supported by a premium sealing system and precision-machined body.
This high-capacity swivel joint is ideal for specialized machinery, multi-function construction equipment, large-scale industrial automation, and other applications where system complexity demands maximum reliability.
Highlights:
- Nine independent flow passages for complex hydraulic systems
- Operates as a swivel joint for rotating systems
- Four-bolt flanges for strong, reliable installation
- Precision-machined for accuracy and consistent operation
- Premium seals for dependable leak resistance under pressure
Our rotary unions can be adapted or custom-built to match your specific requirements.

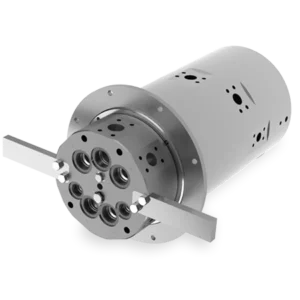

Part Number: YXIC9ØALR1
- Number of Ports: 9
- Port Type: Combination of Four-Bolt Flange & SAE ORB Ports
- Operating Pressure (psi): 3500
- Port Sizes: (2) -16 CODE 61, (3) -20 CODE 61, (2) -24 CODE 61, (1) -06 ORB, (1) -08 ORB
- Overall Length (in): 25.50
- Spool OD (in): 10.50
- Housing OD (in): 12.30
- Torque Arm: Yes – (2) Spool
- Mounting Plate: Yes – (1) Housing
- Weight (lbs): 689
- Slip Ring Adaptable: No

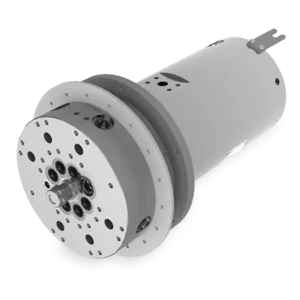

Part Number: YBIH6ØCNS1
- Number of Ports: 9
- Port Type: Combination of Four-Bolt Flange & SAE ORB Ports
- Operating Pressure (psi): 5500
- Port Sizes: (6) -16 CODE 62, (2) -06 ORB, (1) -16 ORB
- Overall Length (in): 23.10
- Spool OD (in): 11.50
- Housing OD (in): 9.50
- Torque Arm: No – 4x 2-Hole Bolt Hole Patterns in Spool Provided
- Mounting Plate: Yes – (1) Housing
- Weight (lbs): 431
- Slip Ring Adaptable: Yes – Upright, 1.00 Liquid Tight Conn., 1.13 Dia. Thru Bore

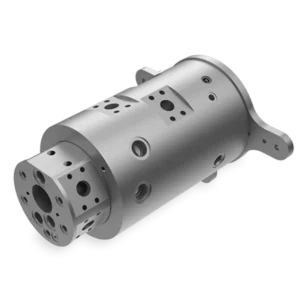

Part Number: YBIH7ØLB1
- Number of Ports: 9
- Port Type: Combination of Four-Bolt Flange & SAE ORB Ports
- Operating Pressure (psi): 5000
- Port Sizes: (4) -20 CODE 62 Housing/-20 CODE 62 & -06 ORB Spool, (2) -06 ORB, (1) -12 ORB, (1) -16 ORB, (1) -16 & -08 ORB Housing/-12 ORB Spool
- Overall Length (in): 20.06
- Spool OD (in): 7.50
- Housing OD (in): 10.38
- Torque Arm: No – 2x Bolt Hole Pattern in Spool Provided
- Mounting Plate: Yes – (1) Housing
- Weight (lbs): 350
- Slip Ring Adaptable: Yes – Inverted, 2.50 Dia. Thru Bore
