Cable Reels

UEA specializes in high-grade cable reels for various industrial applications. Our reels offer customizable options, including custom cable lengths, specialty cable types, and adjustable cable bumpers, ensuring they meet your specific needs. With versatile mounting solutions for floors, walls, ceilings, or custom mounts, our reels provide enhanced durability with spring motor gaskets and nylon guide rollers to prevent cable pinching and reduce drag. Safety and convenience are prioritized with a latch mechanism to securely lock extended cables and constant tension reels for continuous cable tension. Whether you supply the cable or use our installation service, UEA ensures performance and expert support.

uea cable reel

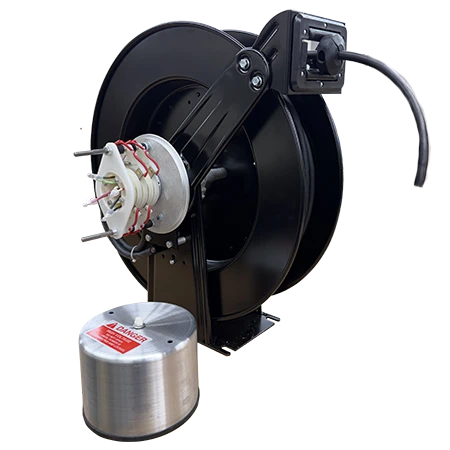

Cable reel displayed with attached slip ring.

Overview of UEA Cable Reels

  • Cable standard SOW-A
  • 5’ of stationary cable length included
  • Adjustable cable bumpers allow varying cable length outside the reel
  • Latch mechanism guarantees extended cable will lock at the desired length
  • Constant tension reels available
  • Varying guide arm positions allow floor, wall, ceiling, or any custom mount
  • Spring motor gasket ensures long life
  • Nylon guide rollers eliminate cable pinching and reduce drag
  • Cable supplied by customer or installed by UEA
  • Specialty cable types per cable reel application
  • Custom cable lengths available

Find Out More

Explore Our Range of Cable Reels

30 series manual cable reel

R30 Series
Manual Hand Crank Cable Reels

The R30 Series manual cable reels support cable lengths extending over 100 feet, making them ideal for applications with fewer extension and retraction cycles. Manual reels provide reliable performance and durability, ensuring long-lasting use in various settings.

  • Provided with standard side crank drive
  • Rugged dual triangular support with shaft bearings
  • Multiple spool width options: Choose from 6”, 12”, 18”, 22”, or 27”
  • Larger diameter cable capability up to .875” O.D.
  • Low profile for critical space requirements
  • Lock pin to prevent free spooling
  • Optional front bevel crank handle available

30 series cable reel

R30 Series
Motorized Cable Reels

Motorized Cable Reels are designed to handle applications requiring frequent extension and retraction cycles. With multiple circuit rating options and the capability to manage over 100 feet of cable, the 30 Series motorized reels can be customized to your needs.

  • Reel options include air, electric, or hydraulic motors
  • Motors designed for heavy-duty usage
  • Rugged dual triangular support with shaft bearings
  • Multiple spool width options: Choose from 6”, 12”, 18”, 22”, or 27”
  • Larger diameter cable capability up to .875” O.D
  • Low profile for critical space requirements
  • Lock pin to prevent free spooling
  • Available for pneumatic reels as well

40 series cable reel

R40 Series Compact
Spring Driven Cable Reels

The R40 Series cable reels are compact yet powerful solutions for limited space. These reels are ideal for small-diameter cables, accommodating cables up to 0.375 inches in diameter and 50 feet in length, with options for handling shorter lengths of larger diameter cables.

  • R40 reel is perfect for small diameter (up to 0.375″) cable up to 50 feet
  • R44 and R46 reels have shorter length, larger diameter cable
Swipe table to see all information
Model No.Max. LengthWire Ga.No. of ConductorsSOW_A Cable
R46L6P330’1630.39
R46L6P430’1640.42
R46L6N330’1430.54
R46L6N430’1440.58
R44L8P340’1630.39
R44L8P440’1640.42
R46L5M325’1230.6
R46L4M420’1240.65
R46L3L315’1030.66
R46L2L410’1040.72

50 series cable reel

R50 Series Small Capacity
Spring Driven Cable Reels

The R50 Series has a larger spool capacity than smaller reels but more compact than larger options, it meets many smaller-size application needs. Ideal for multi-conductor cables of 5 or more, it can handle longer, heavier cables up to 0.73” O.D. Also available in stainless steel.

  • Ideal for multi conductor count cables of 5 or more
  • Larger spool capacity for longer, heavier 0.D. cable up to .73”
  • Available in stainless steel to help with corrosive environments
Swipe table to see all information
Model No.Max. LengthWire Ga.No. of ConductorsSOW_A Cable
R56L8P340’1630.39
R56L9P445’1640.42
R56LAN250’1430.54
R56L9N445’1440.58
R58L6P330’1630.39
R58L6P430’1640.42
R58L8N340’1430.54
R58L8N440’1440.58
R58L8M340’1230.6
R58L7M435’1240.65
R58L6L330’1030.66
R58L5L425’1040.72

R70 Series Medium Capacity
Spring Driven Cable Reels

Our medium-sized cable reel series is designed to handle a variety of tasks efficiently. This model can hold cables up to 75 feet in length and accommodate cable/conductor diameters up to 0.875 inches. The versatility of this cable reel makes the R70 Series one of UEA’s most popular models.

  • Designed to handle heavy-duty applications
  • Narrow profile reel takes up less space
  • Available in stainless steel to help with corrosive environments
Swipe table to see all information
Model No.Max. LengthWire Ga.No. of ConductorsSOW_A Cable
R76LBP355’1630.39
R76LCP460’1640.42
R76LDN365’1430.54
R76LEN470’1440.58
R76LFM375’1230.6
R76LEM470’1240.65
R77L9P345’1630.39
R77LAP450’1640.42
R77LBN355’1430.54
R77LCN460’1440.58
R77LDM365’1230.6
R77LCM460’1240.65
R77LBL355’1030.66
R78L8P340’1630.39
R78L9P445’1640.42
R78LAN350’1430.54
R78LBN455’1440.58
R78LCM360’1230.6
R78LBM455’1240.65
R78LAL350’1030.66
R78LAL450’1040.72

80 series cable reel

R80 Series Large Capacity
Spring Driven Cable Reels

Our large capacity cable reel is engineered for rugged durability. This reel offers an impressive cable extension of up to 100 feet, providing the longest reach in its class. With a variety of circuit ratings available, the construction and adaptability make it a reliable choice for numerous hard use applications.

  • Dual support saddle frame for structural strength
  • Accepts cable up to .875” 0.D.
  • Spring motor options with different torque ratings
  • Available in stainless steel to help with corrosive environments
Swipe table to see all information
Model No.Max. LengthWire Ga.No. of ConductorsSOW_A Cable
R83LKP3100’1630.39
R83LKN3100’1430.54
R83LKM3100’1230.6
R83LKL3100’1030.66
R83LKP4100’1640.42
R83LKN4100’1440.58
R83LKM4100’1240.65
R83LKL4100’1040.72

cable reel tension reels

8″ Constant Tension
Cable Reels

Specifically designed by UEA to provide durability in a compact size, these cable reels are built to last the life of your equipment. They can incorporate 2-6 conductors and offer up to 22 feet of cable extension capacity, depending on cable diameter. An optional top-half cover is available to prevent ice and snow accumulation, enhancing their reliability in harsh conditions.

  • Can incorporate 2-6 conductors
  • Up to 22 ft of cable extension capacity, depending on cable diameter
  • All-steel cable reel construction
  • Optional top-half cover to prevent ice/snow accumulation
  • Various mounting options available, including right and left side of the boom
  • Various spring strengths available

position sensing cable reel

Position Sensing
Cable Reels

With up to 22 feet of cable extension capacity, these cable reels feature an all-steel construction and a durable powder coat finish. Customizable mounting configurations and up to 6 circuits at 15 amps provide versatility. The all-weather, ozone, and UV-resistant cable ensures reliability, and the reel is rigorously tested to offer long-lasting performance.

  • All-steel cable reel construction designed for harsh environments
  • Durable powder coat finish
  • Mounting configuration to customer specifications
  • Encoder measures cable reel rotations at 512 counts per revolution, currently J1939 output
  • Up to 6 circuits available at up to 15 amps
  • Available options include an inclinometer for angle/tilt sensing
  • All-weather cable is ozone and UV resistant
  • Cable reel tested to perform over 20,000 complete cycles

pendant cable reel

Teach Pendant
Cable Reels

Enhance the longevity of your cables with our Teach Pendant Cable Reels. These reels prevent cables from being left on the ground, protecting them from damage by machinery. Enjoy long-term cost savings through reduced cable replacements and lower labor costs. Additionally, our cable reels promote a safer work environment by minimizing hazards.

  • Reels handle virtually any type of communication circuit through our slip ring assemblies
  • UEA can build the cable reel slip ring with any combination and number of circuits to meet the exact requirements of the control system being used
  • Rugged dual triangular support with shaft bearings
  • Customized cable reels to meet our customer requirements, including UEA or customer-supplied cable

Discover how UEA Cable Reels, supported by the expertise of United Equipment Accessories, can provide customized performance and reliability to meet your specific industrial needs. We are dedicated to working closely with you.
