Cable Reel with Length/Distance Measuring Capability
Get a live readout of exactly how much cable is out. An onboard encoder measures payout, and the reel transmits length data over a simple two-wire CAN connection for easy tie-in to vehicle displays and controls.
What is CAN (Controller Area Network)?

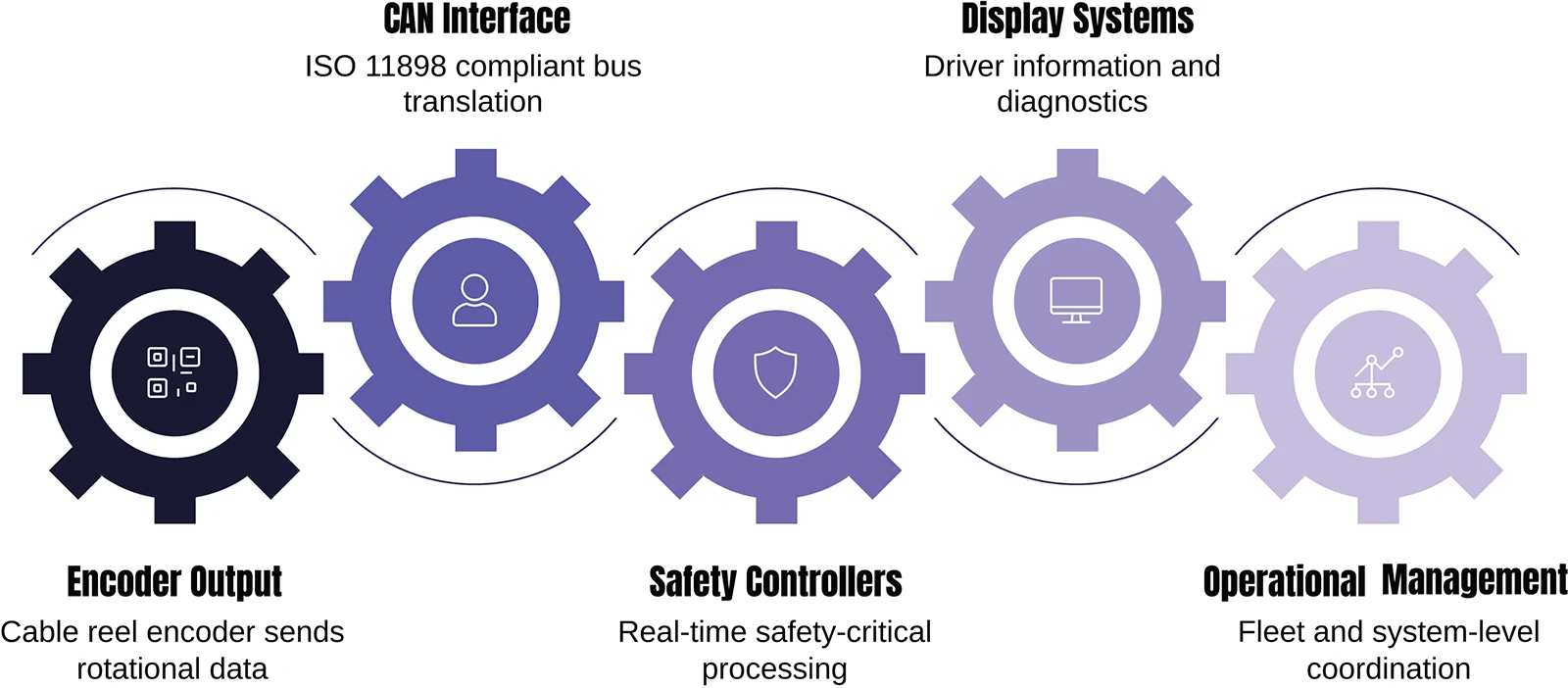

CAN is a two-wire, noise-resistant data bus used on vehicles and mobile equipment. It lets sensors, controllers, and displays share short messages on the same twisted pair with built-in error checking and priority handling. On this reel, the encoder’s cable payout/rewind length is published as CAN messages, so your machine can read it in real time with minimal wiring.
- Precision Measurement System: Uses digital encoders (not potentiometers) to track cable out/in with steady, accurate length and position readings.
- Enhanced Safety Features: Optional dual encoders for fail-safe setups; supports EN 13849 safety architectures for high-risk jobs.
- Universal Integration: Plug-and-play on most vehicles via two CAN wires—no complex wiring harness.
This reel gives operators an instant, accurate readout of cable length, reducing guesswork and rework. A simple two-wire CAN connection ties into the network you already have for quick installs. Real-time feedback helps prevent over-pulls and snags, and the length data feeds your existing display, PLC, or telematics with no extra gauges. You can also log payout and rewind for job tickets and QA, and standard CAN support makes it easy to roll out across a fleet.
Our software is 100% custom-fitted to your application, aligning with your workflows, data structures, and integration for clean deployment and predictable results.

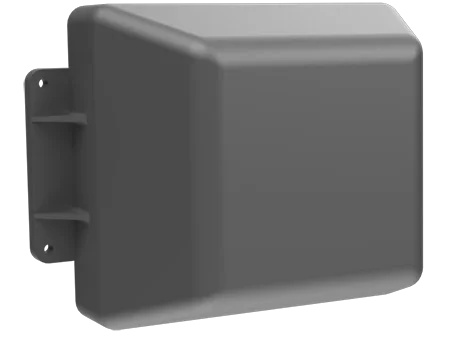

Cable Reel with Built-In Length Meter
This reel tracks cable payout and rewind in real time. A small digital sensor on the reel shaft counts movement. The reel sends length data on your existing CAN network, so your display, PLC, or telematics can use it right away. It helps operators avoid over-pulls and snags, and it’s easy to add across a fleet.
- Cable reel with a built-in length/distance meter
- Works with any vehicle using CAN 2.0 or CAN FD
- Sends live length data on the CAN bus
- Encoder: A shaft encoder counts cable in/out. It lasts longer and drifts less than old-style potentiometers, and it sends clean digital CAN messages.
- Angle Option: Add an inclinometer encoder to also send tilt/angle on the same CAN line for basic position info.

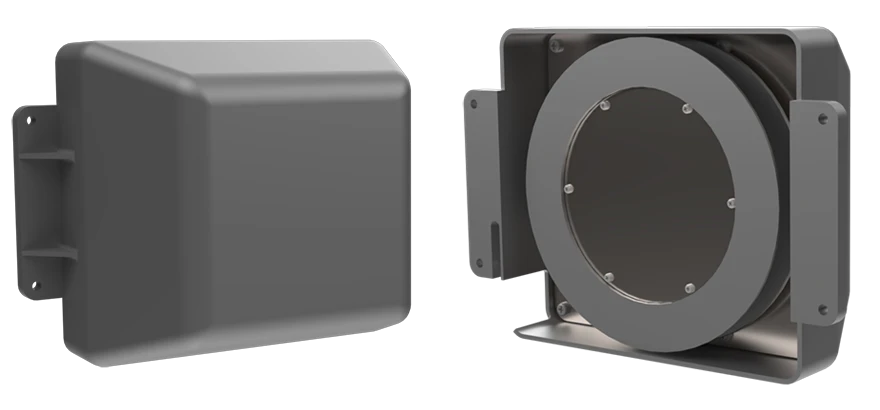

- Housing & Rotation:The customizable housing allows installation in virtually any orientation and stands up to tough conditions. A 6-circuit, 10 A slip ring provides clean signal transmission or power to the implement.
- Enhanced Safety Features: Supports redundant encoder configurations for fail-safe operation and compliance with safety standards such as EN13849, for high-risk industrial environments.
Discover how UEA Cable Reels, supported by the expertise of United Equipment Accessories, can provide customized performance and reliability to meet your specific industrial needs. We are dedicated to working closely with you.
